352nm narrow bandpass filter,FWHM:8nm
Price:$100(FOB Shanghai)
Store:4 pcs
Size:Ф12*4.5mm
CWL:352nm
FWHM:8nm
Type: narrow bandpass filter
Specifications:
Substrate material: Float glass
Dimension(mm):11.4x11.4,Ø12.5x6(mounted),Ø25.4x6(mounted),Custom
Angle of incidence:0��
Center wavelength:352 nm
FWHM:8 nm

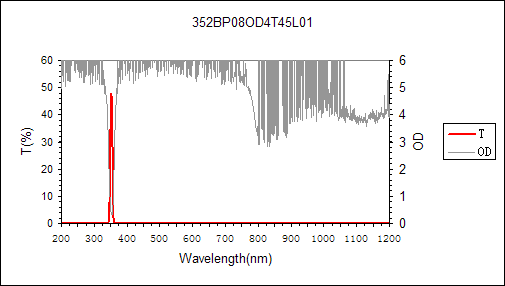

Tpeak: T>45% at 352 nm
Blocking: OD4-200~1200nm What is OD?
Min. clear aperture(mm): >11x11(11.4x11.4),>Ø8.7(v12.7),>Ø21(Ø25.4)
Other: Customed,Store id: B13-01-08
Note: Other dimension and specification are available upon request.
